September 09, 2023

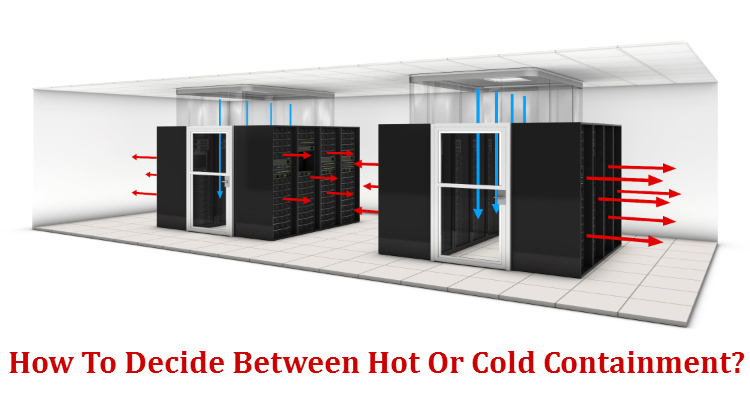

Data center containment methodologies can enormously enhance the consistency and productivity of data center cooling infrastructure. Factually, The Green Grid sees an air management strategy as "the beginning stage while executing a data center energy savings program". Though, most existing data centers are compelled to specific sorts of containment methodologies.
Containment gives some imperative advantages to a data center:
- Reliability will be expanded by forestalling hot spots. It can avert the blending between hot air and cold air, which can give a lower uniform IT bay air temperature for IT tools to lessen hot spots.
- Rack power density can be expanded by abolishing hot air recirculation. For a standard, uncontained raised-floor server farm, rack control densities are typically kept under 6kW/rack ordinary to help turn away hot IT drain air from recycling again into the front of the IT hardware. Subsequent to containing and fixing the gaps to take out hot air distribution ways, rack power densities can increment without the danger of hotspots.
- The cooling limit will be expanded by expanding the "deltaT" (i.e. the distinction in temperature between the cold supply air and the hot return air) over cooling units. The uncontained raised-floor data center, over half of the frosty air provided from the cooling units will sidestep back to these units specifically because of any spillage ways that exist. After contained, supply air will rather experience IT hardware where it will ingest heat energy and transport it back to the cooling units. The higher fumes air temperatures will prompt a greater deltaT crosswise over cooling units, which can expand the cooling limit around at least 20%.
- Cooling system energy funds will be expanded by having the capacity to close down cooling units that end up plainly excess as the consequence of viable isolating hot and cold air streams using an air containment system.
Furthermore, economizer mode hours are expanded. At the point when the open air temperature is lower than the indoor temperature, the cooling system compressors don't have to work to dismiss heat to the outside. So far by now, we know air containment systems can dispense hot spots and give vitality energy funds over standard, uncontained data center outlines. Now the question comes, which is best for a current infrastructure – hot air or cold air containment? This question has raised a lot of discussions among manufacturers, specialists and end clients. The answer, actually is "it depends." It depends upon, helping you settle on an educated choice for your own data center. The initial step is to analyze your data center for any imperatives, which are hindrances that can't be overcome, or possibly not without great cost. Numerous such requirements will viable settle on the choice for you with respect to whether to utilize hot or cold air containment if to be sure either will work.
Below we'll take a gander at a couple of cases of such imperatives. IT hardware arrangement: Having a hot aisle/cold aisle arrangement is practically an essential for a containment solution. However this is an established data center best practice that you will need to in the long run handle in any case, so this is one limitation that merits settling on the off chance that it applies to you. Roof height: If you don't have enough roof stature over your racks, you won't have the capacity to introduce a drop ceiling for use as an air return plenum, which is a necessity for a few sorts of hot aisle containment solutions.
Raised floor depth: If the plenum profundity underneath your raised floor is too little, you will most likely be unable to embrace a cold aisle containment solution in the light as the plenum is utilized to convey cool air to your racks. Thus, cabling, conductor, and channeling situated under the raised floor may make resistance cool wind stream, restricting the viability of a cold aisle containment solution.
Column area: A support column is regularly situated inside a line of racks or lining up with a rack aisle in a data center, both of which may cause obstruction between the columns and aisle containment panels.
Cabling: Overhead cabling can meddle with ducted containment panels, which may take out ducted hot aisle containment or ducted racks as conceivable alternatives. In the event that cabling is steered over the path in a solitary area, the ducted arrangements may, in any case, be conceivable.
Air dissemination type: It's typically hard to change the kind of air circulation in a current data center, and that is a basic factor in deciding the level of venture and multifaceted nature engaged with conveying a specific containment technique. For instance, hot air containment is appropriate for data centers with a focused return and overwhelmed supply, while cold air regulation bodes well for data centers with focused supply and overflowed return.
Lighting contemplations: Creating a containment space in a current data center can prompt poor lighting within the space. While some containment solution utilizes clear or translucent roof ceiling panels to give existing light access, it will diminish the measure of light, particularly if the boards get grimy.
Fire identification and concealment: Once you put in a containment system, you'll have high volumes of air streaming to your IT hardware and back to your cooling units. These wind current examples can weaken smoke, which is not something worth being thankful for from a fire detection and concealment perspective.
Working conditions: If you run with cold air containment, the remaining area of a room adequately turns into an expansive hot-air return plenum, with an indistinguishable temperature from the hot passageway. That might be an issue in the event that you have IT staff who work in the data center, or on the off chance that you have IT hardware situated at the border of the data center, outside the contained aisles. So, before choosing you to have to understand and examine all the constraints in the existing data center. Accordingly, choose the best containment system for your data center.
